Boat Trailers for Sale at Hamilton Marine & Trailers
Explore our range of high-quality boat trailers designed to make launching, loading, and towing simple. Built for durability and ease of use, our trailers suit a wide range of boats and towing setups. Whether you’re upgrading or buying for the first time, our team can help you choose the right trailer to match your boat and ensure safe, hassle-free transport every time.
Trailer Range
S-430 PWC
SUIT PERSONAL WATERCRAFT (JETSKI)
OVERALL LENGTH 4.3mt
*KEEL ROLLER SUPPORT
*SIDE ROLLER SKID ASSEMBLIES AS STANDARD
*FULLY ADJUSTABLE COMPONENTS
*ADJUSTABLE AXLE ASSEMBLY
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 5 LEAF SPRINGS
*LED TAIL LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*QUALITY 5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*BLACK PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 4300mm
TOTAL WIDTH 1750mm
WIDTH IN GUARDS 1320mm
GROSS WEIGHT 749KG
TARE WEIGHT 180KG
price starting at $2200
(optional spare wheel with carrier)
(optional alloy mag wheels)
S-430
SUIT BOAT LENGTH 3.3MT(11FT) TO 4.1MT(13FT)
OVERALL LENGTH 4.3mt
*KEEL ROLLER SUPPORT
*OPTIONED FIBREGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*FULLY ADJUSTABLE COMPONENTS
*ADJUSTABLE AXLE ASSEMBLY
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 5 LEAF SPRINGS
*LED TAIL LIGHTS
*SWING UP JOCKEY WHEEL
*REAR TIE DOWN POINTS
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED 13 INCH RIMS / LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 4300mm
TOTAL WIDTH 1750mm (thin body)
WIDTH IN GUARDS 1320mm
GROSS WEIGHT 749KG
TARE WEIGHT 180KG
price starting at $2200
(optional spare wheel with carrier)
(optional alloy mag wheels)
S-440
SUIT BOAT LENGTH 3.5MT(12FT) TO 4.2MT(14FT)
OVERALL LENGTH 4.4mt
*KEEL ROLLER SUPPORT
*OPTIONED FIBREGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*FULLY ADJUSTABLE COMPONENTS
*ADJUSTABLE AXLE ASSEMBLY
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 5 LEAF SPRINGS
*LED TAIL LIGHTS
*SWING UP JOCKEY WHEEL
*REAR TIE DOWN POINTS
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED 13 INCH RIMS / LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 4400mm
TOTAL WIDTH 2050mm (wide body)
WIDTH IN GUARDS 1620mm
GROSS WEIGHT 749KG
TARE WEIGHT 200KG
price starting at $2200
(optional spare wheel with carrier)
(optional alloy mag wheels)
S-520
SUIT BOAT LENGTH 4.3MT(14FT) TO 4.9MT(16FT)
OVERALL LENGTH 5.2mt
*FULL RUBBER KEEL ROLLER SUPPORT
*CENTRE-GUIDE DRIVE ON SYSTEM
*FULLY ADJUSTABLE COMPONENTS
*OPTIONED FIBREGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*ADJUSTABLE SINGLE AXLE ASSEMBLY
*316 STAINLESS STEEL BRAKE CABLE
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*6X SIDE SUPPORT ROLLER ASSEMBLIES
*OPT. SIDE SKID BUNKS FOR ALUMINIUM BOATS
*LED TAIL LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 5200mm
TOTAL WIDTH 2050mm
WIDTH IN GUARDS 1620mm
GROSS WEIGHT 749KG
TARE WEIGHT 280KG
price starting at $2750
(optional spare wheel with carrier)
(optional alloy mag wheels)
(optional polyurethane keel upgrade)
S-520B
SUIT BOAT LENGTH 4.3MT(14FT) TO 4.9MT(16FT)
OVERALL LENGTH 5.2mt
*FULL RUBBER KEEL ROLLER SUPPORT
*CENTRE-GUIDE DRIVE ON SYSTEM
*GALVANISED MECHANICAL DISC BRAKES
*FULLY ADJUSTABLE COMPONENTS
*OPTIONED FIBREGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*ADJUSTABLE SINGLE AXLE ASSEMBLY
*316 STAINLESS STEEL BRAKE CABLE
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*6X SIDE SUPPORT ROLLER ASSEMBLIES
*OPT. SIDE SKID BUNKS FOR ALUMINIUM BOATS
*LED TAIL LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 5200mm
TOTAL WIDTH 2050mm
WIDTH IN GUARDS 1620mm
GROSS WEIGHT 1200KG
TARE WEIGHT 300KG
price starting at $3350
(optional spare wheel with carrier)
(optional alloy mag wheels)
(optional polyurethane keel upgrade)
(pictured is fibreglass poly keel upgrade/alloy wheels)
S-520BT
SUIT BOAT LENGTH 4.3MT(14FT) TO 4.9MT(16FT)
OVERALL LENGTH 5.2mt
*FULL POLYURETHANE KEEL ROLLER SUPPORT
*CENTRE-GUIDE DRIVE ON SYSTEM
*GALVANISED MECHANICAL DISC BRAKES
*FULLY ADJUSTABLE COMPONENTS
*OPTIONED FIBREGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*ADJUSTABLE TANDEM AXLE ASSEMBLY
*316 STAINLESS STEEL BRAKE CABLE
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*6X SIDE SUPPORT ROLLER ASSEMBLIES
*OPT. SIDE SKID BUNKS FOR ALUMINIUM BOATS
*LED TAIL LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*GALVANISED 5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 5200mm
TOTAL WIDTH 2050mm
WIDTH IN GUARDS 1620mm
GROSS WEIGHT 1600KG
TARE WEIGHT 350KG
price starting at $3800
(optional spare wheel with carrier)
(optional alloy mag wheels)
(pictured is alloy boat setup)
S-560
SUIT BOAT LENGTH 4.9MT(16.FT) TO 5.3MT(17.5FT)
OVERALL LENGTH 5.6mt
*FULL POLYURETHANE KEEL ROLLER SUPPORT
*OPTIONED FIBREGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*CENTRE-GUIDE DRIVE ON SYSTEM
*GALVANISED MECHANICAL DISC BRAKES
*FULLY ADJUSTABLE COMPONENTS
*ADJUSTABLE SINGLE AXLE ASSEMBLY
*316 STAINLESS STEEL BRAKE CABLE
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*6X SIDE SUPPORT ROLLER ASSEMBLIES
*OPT. SIDE SKID BUNKS FOR ALUMINIUM BOATS
*LED LIGHTS, INC SIDE CLEARANCE LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 5600mm
TOTAL WIDTH 2250mm
WIDTH IN GUARDS 1820mm
GROSS WEIGHT 1340KG
TARE WEIGHT 340KG
price starting at $3950
(optional spare wheel with carrier)
(optional alloy mag wheels)
S-560T
SUIT BOAT LENGTH 4.9MT(16FT) TO 5.4MT(17.5FT)
OVERALL LENGTH 5.6mt
*FULL POLYURETHANE KEEL ROLLER SUPPORT
*OPTIONED FIBREGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*CENTRE-GUIDE DRIVE ON SYSTEM
*GALVANISED MECHANICAL DISC BRAKES
*FULLY ADJUSTABLE COMPONENTS
*ADJUSTABLE TANDEM AXLE ASSEMBLY
*316 STAINLESS STEEL BRAKE CABLE
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*8X SIDE SUPPORT ROLLER ASSEMBLIES
*OPT. SIDE SKID BUNKS FOR ALUMINIUM BOATS
*LED LIGHTS, INC SIDE CLEARANCE LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 5600mm
TOTAL WIDTH 2250mm
WIDTH IN GUARDS 1820mm
GROSS WEIGHT 1999KG
TARE WEIGHT 420KG
price starting at $4800
(optional spare wheel with carrier)
(optional alloy mag wheels)
S-600T
SUIT BOAT LENGTH 5.2MT(17FT) TO 5.7MT(18.5FT)
OVERALL LENGTH 6mt
*FULL POLYURETHANE KEEL ROLLER SUPPORT
*OPTIONED FIBERGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*CENTRE-GUIDE DRIVE ON SYSTEM
*GALVANISED MECHANICAL DISC BRAKES
*FULLY ADJUSTABLE COMPONENTS
*ADJUSTABLE TANDEM AXLE ASSEMBLY
*316 STAINLESS STEEL BRAKE CABLE
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*8X SIDE SUPPORT ROLLER ASSEMBLIES
*OPT. SIDE SKID BUNKS FOR ALUMINIUM BOATS
*LED LIGHTS, INC SIDE CLEARANCE LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 6000mm
TOTAL WIDTH 2250mm
WIDTH IN GUARDS 1820mm
GROSS WEIGHT 1999KG
TARE WEIGHT 440KG
price starting at $5050
(optional spare wheel with carrier)
(optional alloy mag wheels)
S-650T
SUIT BOAT LENGTH 5.7MT(19FT) - 6.2MT(20FT)
OVERALL LENGTH 6.6MT
*FULL POLYURETHANE KEEL ROLLER SUPPORT
*CENTRE-GUIDE DRIVE ON SYSTEM
*OPTIONED FIBERGLASS OR ALLUMINIUM BOAT SUPPORT SETUP
*GALVANISED MECHANICAL DISC BRAKES
*FULLY ADJUSTABLE COMPONENTS
*ADJUSTABLE TANDEM AXLE ASSEMBLY
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*8X SIDE SUPPORT ROLLER ASSEMBLIES
*OPT. SIDE SKID BUNKS FOR ALUMINIUM BOATS
*LED LIGHTS INC SIDE CLEARANCE LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*QUALITY 5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 6600mm
TOTAL WIDTH 2250mm
WIDTH IN GUARDS 1820mm
GROSS WEIGHT 1990KG
TARE WEIGHT 470KG
price starting at $5250
(optional spare wheel with carrier)
(optional alloy mag wheels)

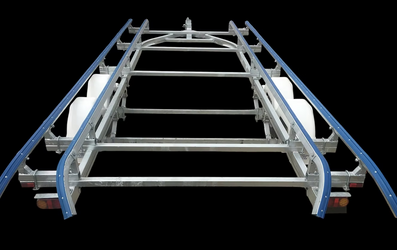

S-740 PONTOON
SUIT BOAT LENGTH 6MT(19FT) TO 6.6MT(22FT)
OVERALL LENGTH 7.4MT
*GALVANISED MECHANICAL DISC BRAKES
*FULLY ADJUSTABLE TO SUIT
*4 STEP BOW LADDER WITH HAND RAIL
*ADJUSTABLE TANDEM AXLE ASSEMBLY
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*TWIN PONTOON SUPPORT RAILS (6MT)
*LED LIGHTS, INC SIDE CLEARANCE LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 7400mm
TOTAL WIDTH 2280mm
WIDTH IN GUARDS 1820mm
GROSS WEIGHT 1999KG
TARE WEIGHT 550KG
price starting at $6500
(optional spare wheel with carrier)
(optional alloy mag wheels)
S-740 TRITOON
SUIT BOAT LENGTH 6MT(19FT) TO 6.6MT(22FT)
OVERALL LENGTH 7.4MT
*GALVANISED MECHANICAL DISC BRAKES
*FULLY ADJUSTABLE TO SUIT
*4 STEP BOW LADDER WITH HAND RAIL
*ADJUSTABLE TANDEM AXLE ASSEMBLY
*BEARING BUDDIES WITH DUST CAPS
*GALVANISED AXLE HUBS AND 7 LEAF SPRINGS
*TRIPPLE PONTOON SUPPORT RAILS (6MT)
*LED LIGHTS, INC SIDE CLEARANCE LIGHTS
*GALVANISED SWING UP JOCKEY WHEEL
*5:1 RATIO WINCH WITH WEBBING
*GALVANISED RIMS / NEW LIGHT TRUCK TYRES.
*PLASTIC MOULDED WASSON GUARDS
TOTAL LENGTH 7400mm
TOTAL WIDTH 2280mm
WIDTH IN GUARDS 1820mm
GROSS WEIGHT 1999KG
TARE WEIGHT 570KG
price starting at $6900
(optional spare wheel with carrier)
(optional alloy mag wheels)
Visit Us in Hamilton
Visit Hamilton Marine & Trailers in Hamilton VIC 3300 to explore our range of new boat trailers built for performance, durability, and easy towing. Whether you're upgrading your current setup or purchasing your first trailer, our team can help match the right option to your boat and towing requirements.
Speak with Peter and Ian for expert advice and take a closer look at our trailers in person. We’ll make sure you leave with a reliable solution ready for your next trip on the water.
